Basic Information

Rated temperature: 125℃
Rated voltage: 900V
According to: PPP 58049A:2019
The conductor adopts IEC60228-2004 standard Class 5 or Class 6 conductor 4.0-240mm2 tin plated or bare copper
The insulation is made of heat-resistant 125℃ low-smoke halogen-free flame-retardant cross-linked polyolefin material
Environmental requirements: Compliant with RoHS standards
The product is widely used in the cable between the battery modules on the DC side, between the battery clusters, between the battery clusters and the combiner box or between the battery clusters and the energy storage converter in the power energy storage system

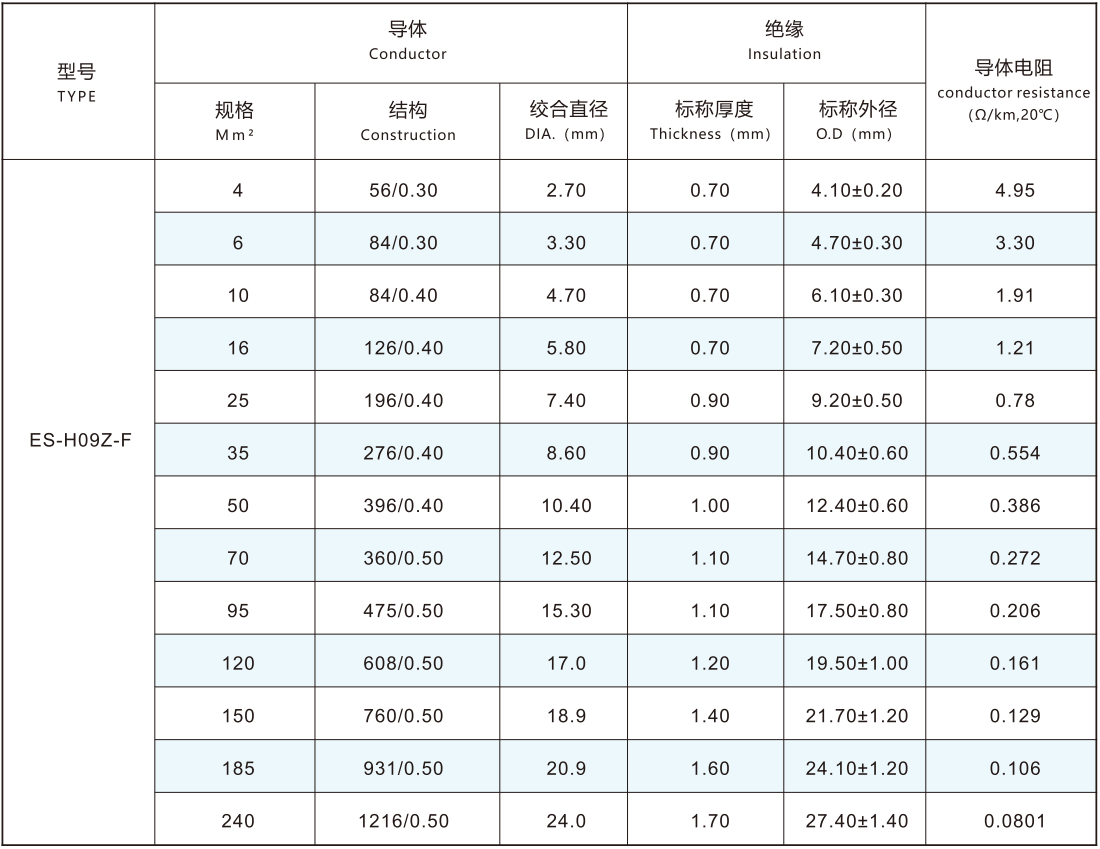

Technical Parameters

*The product's detailed description please refer to the specification for approval
Note: Specitications and structures outside the series can be agreed upon by both the supply and demand parties.
